145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5
  • name

145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-WGLD-145220-WR5
Part Number:
VN-WGLD-145220-WR5
Operating Frequency ( GHz ):
145-220
Impedance ( Ohm ):
50
VSWR:
≤1.25
Interface:
WR5(BJ1800)
Highlight:

145-220GHz waveguide load

,

WR-5 waveguide load

,

VN-WGLD-145220-WR5 waveguide device

Product Description

145-220GHz WR-5 WAVEGUIDE LOAD



  • Low insertion loss (by design, as a terminating load)
  • Suitable for high‑power and low‑power applications
  • Protection of sensitive transmitter components



A WAVEGUIDE LOAD is a passive, non-radiating termination device used in waveguide transmission systems. Its primary electrical characteristic is to present a matched impedance (typically 50 ohms equivalent or the waveguide’s characteristic impedance) to the source, thereby absorbing incident microwave energy with minimal reflection.



                       VN-WGLD-145220-WR5.pdf

  • Absorption of Microwave Energy:
    A WAVEGUIDE LOAD converts electromagnetic wave energy into heat, preventing standing waves. Any high‑power system requires a WAVEGUIDE LOAD to terminate unused ports.

  • Reduction of Voltage Standing Wave Ratio (VSWR):
    By absorbing nearly all incident power, a WAVEGUIDE LOAD maintains a low VSWR (typically <1.05), ensuring signal source stability and measurement accuracy.

  • Protection of Sensitive Components:
    During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

Part Number VN-WGLD-145220-WR5
Operating Frequency ( GHz ) 145-220
Impedance ( Ohm ) 50
VSWR ≤1.25
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR5(BJ1800)
Dimension(mm) As below
Handling Power 0.3 (Watt, max)
ROHS Compliance Yes

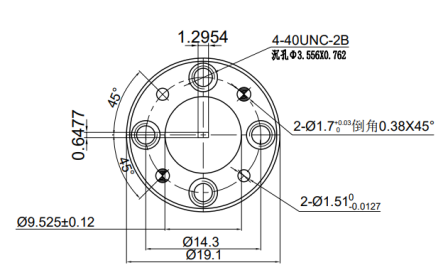

145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5 0145-220GHz WR-5 WAVEGUIDE LOAD VN-WGLD-145220-WR5 1

Tags:

waveguide device,

waveguide load,

waveguide termination load

Recommended Products
