92-98Hz WR-10 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12

Hot Products

Waveguide Devices

sales@vinncom.com

+86 177 5515 1077

Contact Now

92-98Hz WR-10 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	2-4weeks
Payment Method:	T/T, Western Union
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-WGISO-9298-WR10

Operating Frequency (GHz ):

92-98

Operating Temperature( ℃ ):

-45 ~ + 80

Insertion Loss(dB Max):

Isolation(dB Min):

Return Loss(dB):

Product Description

92-98GHz WR-10 WAVEGUIDE ISOLATOR

Non‑reciprocal operation (one‑way transmission)
Protection of expensive sources (magnetrons, amplifiers, oscillators)
Available from 92 GHz to 98 GHz+

Working Principle of a WAVEGUIDE ISOLATOR

A WAVEGUIDE ISOLATOR is a two‑port non‑reciprocal ferrite device.
A WAVEGUIDE ISOLATOR allows microwave energy to pass with very low loss in the forward direction.
In the reverse direction, a WAVEGUIDE ISOLATOR provides very high attenuation (isolation).
A WAVEGUIDE ISOLATOR is essentially a WAVEGUIDE CIRCULATOR with one port permanently terminated internally by a WAVEGUIDE LOAD.

Medical microwave equipment –
A WAVEGUIDE ISOLATOR protects the generator from reflected power in diathermy or ablation systems.
Industrial microwave heating –
A WAVEGUIDE ISOLATOR prevents magnetron damage caused by load impedance changes during heating.
Test laboratories and R&D –
A WAVEGUIDE ISOLATOR is a standard component in any waveguide test bench to ensure unidirectional power flow.

In every working scenario, a WAVEGUIDE ISOLATOR acts as a protective one‑way valve for microwave energy.

VN-WGCIR-9298-WR10.pdf

Part Number	VN-WGISO-9298-WR10
Operating Frequency ( GHz )	92-98
Insertion Loss(dB)	≤1.0(0.7Typ)
Isolation(dB)	≥17
Return Loss(dB)	≥16
Operating Temperature ( ℃ )	-45 ~ + 80
Interface	WR10 with UG-387/U Anti-Cocking

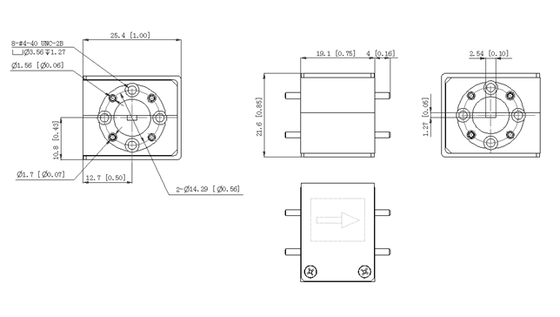

Dimension(mm)	As below
Handling Power	3W/1W
ROHS Compliance	Yes

92-98Hz WR-10 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12
