Name: 22-33GHz WR-34 WAVEGUIDE MAGIC T
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGMT-2233-WR34
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-WGMT-2233-WR34

Part Number:

VN-WGMT-2233-WR34

Operating Frequency ( GHz ):

22-33

Insertion Loss(dB):

1.3:1(Typical Surfance)

VSWR E-plane:

1.5:1(Typical Surfance)

Symmetry(dB):

±0.4

Isolation(dB):

≥30

Highlight:

22-33GHz WR-34 waveguide magic T

WR-34 waveguide magic T with warranty

waveguide magic T for RF applications

Product Description

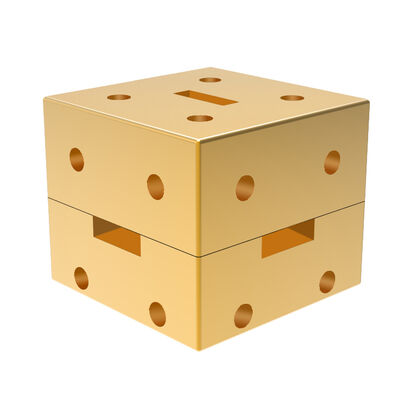

22-33GHz WR-34 WAVEGUIDE MAGIC T

Stable performance over temperature and vibration
Enables monopulse radar tracking (sum/delta channels)
Passive device – no external power required

Power combiners and dividers –
A WAVEGUIDE MAGIC T equally splits a high‑power signal into two paths, or combines two signals into one.
alanced mixers –
A WAVEGUIDE MAGIC T combines the local oscillator (LO) signal and the RF signal in an image‑rejection mixer architecture.
Phase comparators and detectors –
A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.
Connect source to H‑arm –
For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.
Use collinear arms as outputs –
The two collinear arms of a WAVEGUIDE MAGIC T serve as balanced outputs, each receiving half the input power.

Part Number	VN-WGMT-2233-WR34
Operating Frequency ( GHz )	22-33
VSWR H-plane	1.3:1(Typical surfance)
VSWR E-plane	1.5:1(Typical surfance)
Symmetry(dB)	±0.4
Isolation(dB)	≥30
Interface	WR34 (BJ260)
Dimension(mm)	As below
Bandwidth	FULL
ROHS Compliance	Yes

22-33GHz WR-34 WAVEGUIDE MAGIC T
