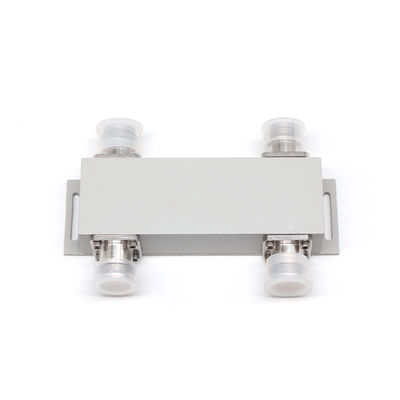

Name: 698-2700MHz 2in2out 4.3-10F Hybrid Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2X2-0727-OP
Price: 414.00 USD
Availability: InStock

MOQ:	5 PCS
Price:	Negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	800pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

vinncom

Certification

ROHS ISO9000

Model Number

VN-HC2X2-0727-OP

Part Number:

VN-HC2x2-0727-OP

VSWR:

≤1.20

Insertion Loss (dB):

3.6

Coupling (dB):

3.0±0.8

Highlight:

50Ohm 698-2700MHz 3dB Hybrid Coupler

50Ohm 3dB Hybrid Coupler

3dB vinncom directional coupler

Product Description

698-2700MHz 2in2out 4.3-10F Hybrid Coupler

Good PIM up to -160@43dBm*2
Good VSWR at all ports
Less Insertion Loss

VN-HC2x2-0727-OP-xxx.pdf

Part Number	VN-HC2x2-0727-OP
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.20
Coupling (dB)	3.0±0.8
Insertion Loss (dB)	3.6
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-140 / -150 / -155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	127 × 44 × 31
Net Weight (g)	565 ± 20
Packing Dimensions (mm,L×W×H)	170 × 100 × 40
Packing Carton Size (mm,L×W×H)	520 × 360 × 110
ROHS Compliance	Yes
