Product Details
Place of Origin: CHINA
Brand Name: Vinncom
Certification: ROHS ISO9000
Model Number: VN-HC2x2-05527-ON
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500pcs per day
Application: |
As Same Band Combiner |
Hight Isolation: |
Typically 25db ,30(max) |
LOW VSWR: |
1.15(max) |
Connector: |
N Female |
OEM/ODM: |
Acceptable |
Color: |
Customized |
Application: |
As Same Band Combiner |
Hight Isolation: |
Typically 25db ,30(max) |
LOW VSWR: |
1.15(max) |
Connector: |
N Female |
OEM/ODM: |
Acceptable |
Color: |
Customized |

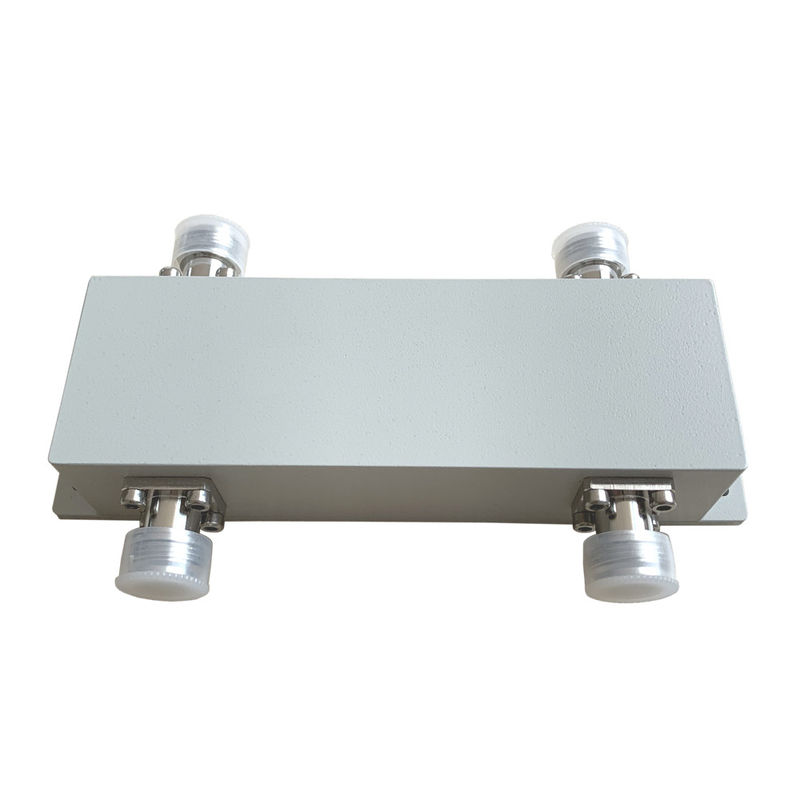

550-2700MHZ N Female Low PIM 3dB Hybrid Coupler Combiner DAS
Part Number | VN-HC2x2-05527-ON |
Operating Frequency ( MHz ) | 550-2700 |
Impedance ( Ohm ) | 50 |
VSWR | 1.25 |
Coupling (dB) | 3 |
Insertion Loss (dB) | ±0.7 |
Isolation (dB) | 25 |
IM3 (dBc @ 2×43dBm) | -153/-163 |
Application | Indoor & Outdoor |
Degree of Protection | IP65 |
Operating Temperature ( ℃ ) | -40 ~ + 80 |
Interface | N Female |
Handling Power (Watt, max) | 300 |
Peak Power (Watt, max) | 1200 |
Dimension (mm)(L×W×H, excl connector) | 135.6X45X32 |
Net Weight (g) | 535 |
Packing Weight (kg/pcs) | 11.8/20 |
Packing Dimensions (mm,L×W×H) | 170X100X40 |
Packing Carton Size (mm,L×W×H) | 520X360X105 |
ROHS Compliance | Yes |
Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .
For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.
Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
