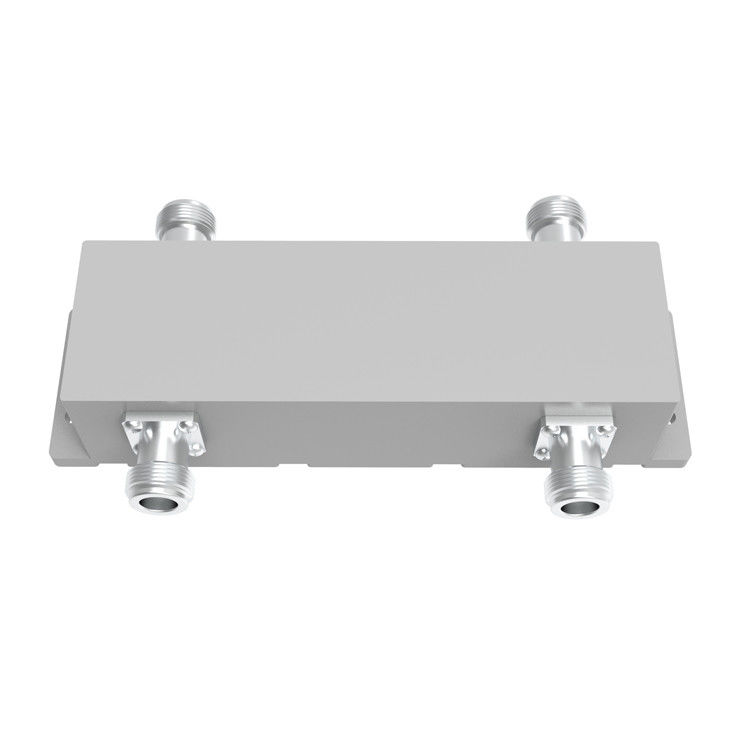

600-4000MHz 2in 2out N Female Hybrid Coupler

Name: 600-4000MHz 2in 2out N Female Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-0640-ON
Rating: 5 (185 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-0640-ON

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            -163dbc 3db hybrid combiner, 2*2 3db hybrid combiner, 4000MHZ vhf directional coupler


Application:	As Same Band Combiner	Hight Isolation:	24db
LOW VSWR:	1.25(max)	Connector:	N Female
OEM/ODM:	Acceptable	Color:	Customized
PIM:	-153dbc -163dbc @43dbm*2

Application:	As Same Band Combiner
Hight Isolation:	24db
LOW VSWR:	1.25(max)
Connector:	N Female
OEM/ODM:	Acceptable
Color:	Customized
PIM:	-153dbc -163dbc @43dbm*2

Description

600-4000MHz 2in 2out N Female Hybrid Coupler

600-4000MHZ N Female Low PIM 3dB Hybrid Coupler Combiner DAS

Wide band
Low PIM -163dBc@43dBm*2
Good returen loss

VN-HC2x2-0642-ON-xxx.pdf

Part Number	VN-HC2x2-0640-ON
Operating Frequency ( MHz )	600-4000
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3±1
Insertion Loss (dB)	3±1
Isolation (dB)	24
IM3 (dBc @ 2×43dBm)	-153/-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	140.64434.5
Net Weight (g)	590± 5%
Packing Weight (kg/pcs)	12.9/20
Packing Dimensions (mm,L×W×H)	17010040
Packing Carton Size (mm,L×W×H)	520360105
ROHS Compliance	Yes

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
