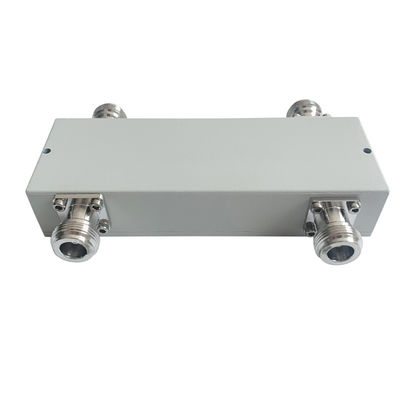

698-2700MHz 2in2out N Female Hybrid Coupler

Name: 698-2700MHz 2in2out N Female Hybrid Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2x2-0727-ON-xxx
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-0727-ON-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          698 to 2700MHz 3dB Hybrid Coupler, N Female 3dB Hybrid Coupler, 698MHZ indoor directional coupler


Application:	As Same Band Combiner	Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.15(max)	Connector:	N Female
OEM/ODM:	Acceptable	Color:	Customized
PIM:	153dbc 163dbc@43dbm*2

Application:	As Same Band Combiner
Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.15(max)
Connector:	N Female
OEM/ODM:	Acceptable
Color:	Customized
PIM:	153dbc 163dbc@43dbm*2

Description

698-2700MHz 2in2out N Female Hybrid Coupler

698-2700MHz 2in2out N Female Hybrid Coupler

wide band
Good returen loss
High isolation

VN-HC2x2-0727-ON-xxx.pdf

Part Number	VN-HC2x2-0727-ON
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.20
Coupling (dB)	3.0±0.8
Insertion Loss (dB)	3.6
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-140 / -150 / -155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	127 × 44 × 25
Net Weight (g)	385 ± 20
Packing Dimensions (mm,L×W×H)	165 × 87 ×35
Packing Carton Size (mm,L×W×H)	460 × 350 × 195
ROHS Compliance	Yes
