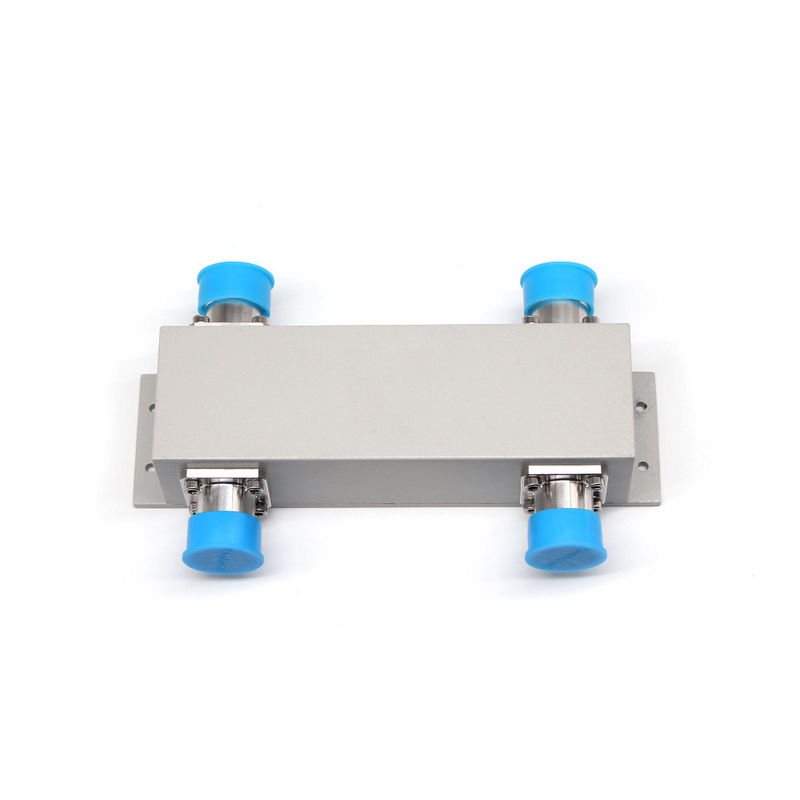

698-3800MHz 2in2out 4.3-10 F Hybrid Coupler

698-3800MHz 2in2out 4.3-10 F Hybrid Coupler

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-0738-OP
Application:
As Same Band Combiner
Hight Isolation:
Typically 25db ,30(max)
LOW VSWR:
1.15(max)
Connector:
4.3-10 Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
153dbc 163dbc@43dbm*2
Highlight:

698-3800MHz 3dB Hybrid Coupler

,

3800MHZ 3dB Hybrid Coupler

,

Vinncom wideband hybrid coupler

Product Description

698-3800MHz 2in2out 4.3-10 F Hybrid Coupler



  • Good PIM up to -160@43dBm*2
  • Good returen loss
  • High directivity



 VN-HC2x2-0738-OP-xxx.pdf

Part Number VN-HC2x2-0738-OP
Operating Frequency ( MHz ) 698-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.9
Insertion Loss (dB) 3.7
Isolation (dB) ≥23
IM3 (dBc @ 2×43dBm) -140 / -150 / -155 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 141 × 44 × 38
Net Weight (g) 685 ± 20
Packing Dimensions (mm,L×W×H) 170 × 100 × 40
Packing Carton Size (mm,L×W×H) 520 × 360 × 110
ROHS Compliance Yes



698-3800MHz 2in2out 4.3-10 F  Hybrid Coupler 0
