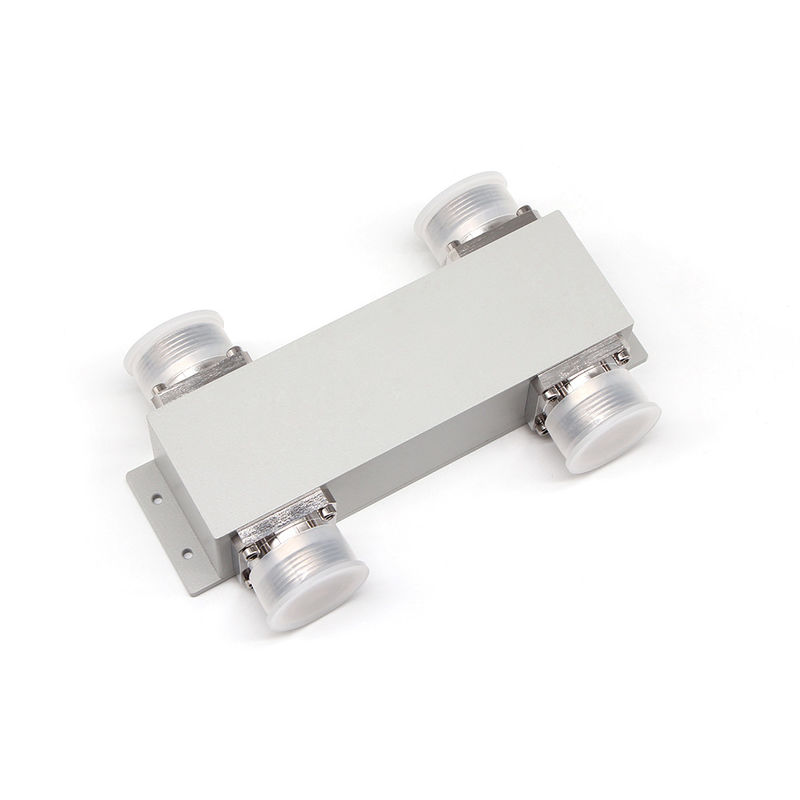

698-3800MHz 2in 2out DIN Female Hybrid Coupler

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-0738-OD-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

-160dbc High Power Hybrid Coupler

,

DIN Female High Power Hybrid Coupler

,

DAS rf hybrid coupler

Application:
As Same Band Combiner
Hight Isolation:
Typically 25db ,30(max)
LOW VSWR:
1.15(max)
Connector:
DIN Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
153dbc 163dbc@43dbm*2
Application:
As Same Band Combiner
Hight Isolation:
Typically 25db ,30(max)
LOW VSWR:
1.15(max)
Connector:
DIN Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
153dbc 163dbc@43dbm*2
Description
698-3800MHz 2in 2out DIN Female Hybrid Coupler

698-3800MHZ DIN Female Low PIM -160dbc 3dB Hybrid Coupler Combiner DAS



  • Low PIM -165dBc@43dBm*2
  • Good returen loss
  • High isolation



                                                                                           VN-HC2x2-0738-OD-xxx.pdf

Part Number VN-HC2x2-0738-OD
Operating Frequency ( MHz ) 698-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.9
Insertion Loss (dB) 3.7
Isolation (dB) ≥23
IM3 (dBc @ 2×43dBm) -140 / -150 / -155 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 141 × 44 × 38
Net Weight (g) 880 ± 20
Packing Dimensions (mm,L×W×H) 170 × 100 × 40
Packing Carton Size (mm,L×W×H) 520 × 360 × 110
ROHS Compliance Yes



698-3800MHz 2in 2out DIN Female Hybrid Coupler 0



Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
