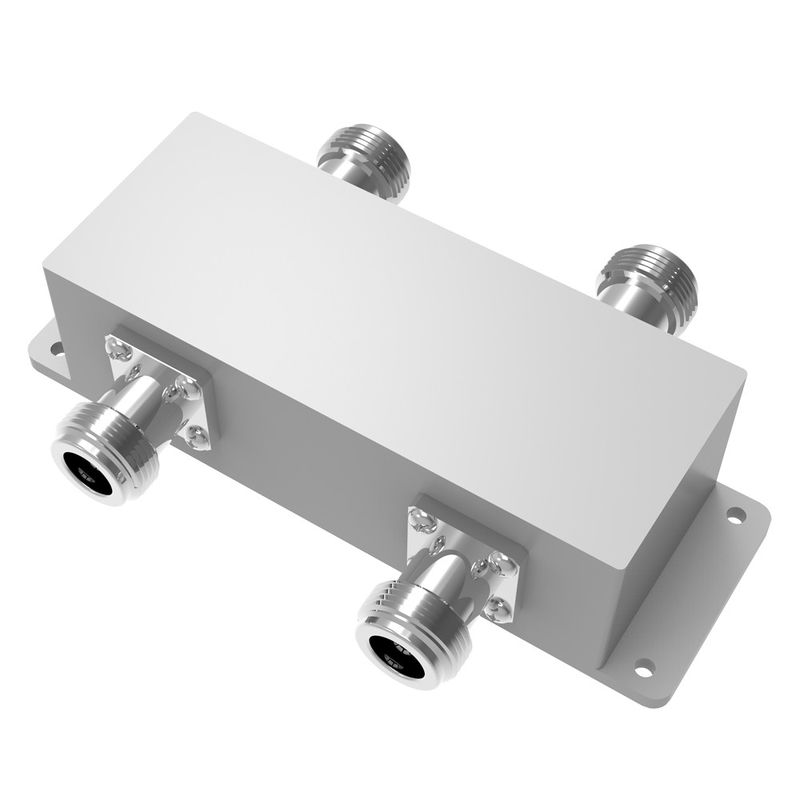

4 Port Directional 25db 2700-6000MHZ Wideband Rf Hybrid Coupler

Name: 4 Port Directional 25db 2700-6000MHZ Wideband Rf Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-2760-ON
Rating: 4.8 (115 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-2760-ON

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    25db rf hybrid coupler, 25db wideband hybrid coupler, 6000mhz wideband hybrid coupler


Application:	As Same Band Combiner	Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.20(max)	Connector:	N Female
OEM/ODM:	Acceptable	Color:	Customized

Application:	As Same Band Combiner
Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.20(max)
Connector:	N Female
OEM/ODM:	Acceptable
Color:	Customized

Description

4 Port Directional 25db 2700-6000MHZ Wideband Rf Hybrid Coupler

2700-6000MHZ N Female Low PIM 3dB Hybrid Coupler DAS

High isolation
High directivity
Good returen loss

Part Number	VN-HC2x2-2760-ON
Operating Frequency ( MHz )	2700-6000
Impedance ( Ohm )	50
VSWR	1.2
Coupling (dB)	3
Insertion Loss (dB)	±0.5
Isolation (dB)	26
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	114.1X36X32.5
Net Weight (g)	350±20
Packing Dimensions (mm,L×W×H)	170X100X40
Packing Carton Size (mm,L×W×H)	520X360X110
ROHS Compliance	Yes

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
