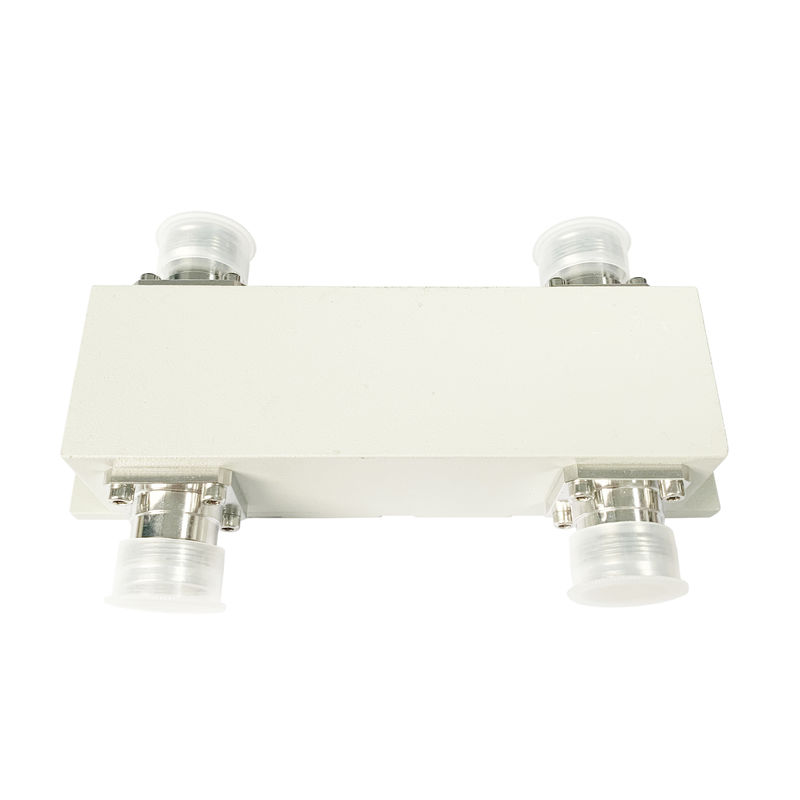

550-6000MHz 2in 2out N Female Hybrid Coupler

Name: 550-6000MHz 2in 2out N Female Hybrid Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2x2-05560-ON-xxx
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-HC2x2-05560-ON-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: bubble bags+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      N Female Connector Hybrid Coupler, 300W Hybrid Coupler, 300W broadband hybrid coupler


Frequency:	617-6000MHz	Color:	Gray
Impedance ( Ohm ):	50	Coupling (dB):	3
Insertion Loss (dB):	±1.4	IM3 (dBc @ 2×43dBm):	-153/-163

Frequency:	617-6000MHz
Color:	Gray
Impedance ( Ohm ):	50
Coupling (dB):	3
Insertion Loss (dB):	±1.4
IM3 (dBc @ 2×43dBm):	-153/-163

Description

550-6000MHz 2in 2out N Female Hybrid Coupler

617-6000MHz 2 In 2 Out 300W N Female Connector Hybrid Coupler/2:2 Combiner

Good PIM up to -163@43dBm*2
Good returen loss
wide band

VN-HC2x2-05560-ON-xxx.pdf

Part Number	VN-HC2x2-05560-ON
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±1.4
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)	-153/-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	131X40X38.4
Net Weight (g)	600
Packing Dimensions (mm,L×W×H)	170X100X40
Packing Carton Size (mm,L×W×H)	520X360X105
ROHS Compliance	Yes
