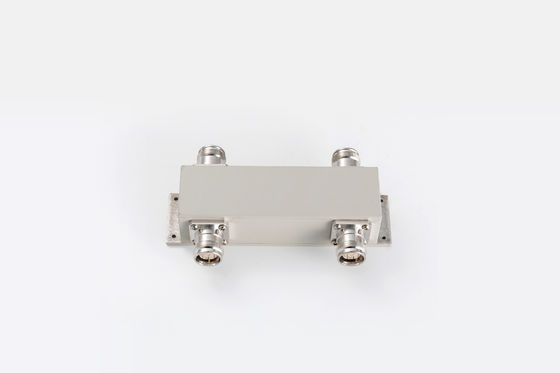

550-6000MHz 2in2out 4.3-10F/NF Hybrid Coupler

Name: 550-6000MHz 2in2out 4.3-10F/NF Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-05560-OXx
Rating: 4.9 (100 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-HC2x2-05560-OXx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    550-6000MHz Hybrid Coupler, Hybrid Coupler PIM -150, N Female Hybrid Coupler


Operating Frequency ( MHz ):	550-6000	Coupling (dB):	3
Isolation (dB):	20	IM3 (dBc @ 2×43dBm):	-150/-160
Application:	Indoor & Outdoor	VSWR:	1.35

Operating Frequency ( MHz ):	550-6000
Coupling (dB):	3
Isolation (dB):	20
IM3 (dBc @ 2×43dBm):	-150/-160
Application:	Indoor & Outdoor
VSWR:	1.35

Description

550-6000MHz 2in2out 4.3-10F/NF Hybrid Coupler

550-6000MHz Hybrid Coupler PIM -150/-160 N Female/4.3-10 Female For DAS

Good returen loss
Wide band
High directivity

VN-HC2x2-05560-OP-xxx.pdf

VN-HC2x2-05560-ON-xxx.pdf

Part Number	VN-HC2x2-05560-Ox-XXX
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±1.4
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)	-150/-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female/4.3-10 Female
Handling Power (Watt, max)	500(N:300)
Peak Power (Watt, max)	1500(N:1200)
Dimension (mm)(L×W×H, excl connector)	131X40X38.4	131X40X38.4
Net Weight (g)	600± 5%	600± 5%
Packing Dimensions (mm,L×W×H)	170X100X40	170X100X40
Packing Carton Size (mm,L×W×H)	520X360X105	520X360X105
ROHS Compliance	Yes

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
