698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160
  • name
  • name

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

MOQ: 5 PCS
Price: VN-HC2x2-035052-ON-xxx
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-HC2x2-0738-OX
Part Number:
VN-HC2x2-0738-OX
Impedance ( Ohm ):
50
Operating Frequency ( MHz ):
698-3800
VSWR:
≤1.25
Coupling (dB):
3.0±0.9
Highlight:

Hybrid Coupler 698-3800MHz

,

Hybrid Coupler 2in 2out

,

698-3800MHz Hybrid Couplers

Product Description

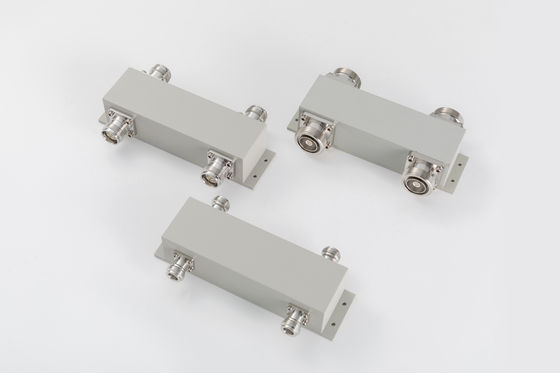

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160



  • High isolation
  • Good PIM up to -160@43dBm*2
  • Good Flatness



      VN-HC2x2-0738-OD-xxx.pdf

      VN-HC2x2-0738-ON-xxx.pdf

      VN-HC2x2-0738-OP-160.pdf

 Part Number  VN-HC2x2-0738-OX
 Operating Frequency ( MHz )  698-3800
 Impedance ( Ohm )  50
 VSWR  ≤1.25
 Coupling (dB)  3.0±0.9
 Insertion Loss (dB)  3.7
 Isolation (dB)  ≥25
 IM3 (dBc @ 2×43dBm)  -150 / -160
 Application  Indoor & Outdoor
 Degree of Protection  IP65
 Operating Temperature ( ℃ )  -40 ~ + 80
 Interface  N Female/4.3-10 Female/DIN Female
 Handling Power (Watt, max)  500(N:300)
 Peak Power (Watt, max)  1500(N:1200)
 Dimension (mm)(L×W×H, excl connector)   141 × 44 × 38  170 × 100 × 40   170 × 100 × 40
 Net Weight (g)  615 ± 20  685 ± 20  880 ± 20
 Packing Dimensions (mm,L×W×H)  170 × 100 × 40 170 × 100 × 40 170 × 100 × 40
 Packing Carton Size (mm,L×W×H)   460 × 350 × 195     520 × 360 × 110    520 × 360 × 110





                                   698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160 0698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160 1







Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.


Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

Hybrid Coupler 698-3800MHz
