698-2700MHz 2 In 2 Out Hybrid Coupler PIM -150/-160
  • name
  • name
  • name
  • name
  • name

698-2700MHz 2 In 2 Out Hybrid Coupler PIM -150/-160

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-HC2x2-0727-Ox-XXX
Operating Frequency ( MHz ):
698-2700
Impedance ( Ohm ):
50
VSWR:
1.2
Coupling (dB):
3±0.8
Insertion Loss (dB):
±3.6
Isolation (dB):
25
IM3 (dBc @ 2×43dBm):
-150/-160
Highlight:

698-2700MHz Hybrid Couplers

,

2 In 3dB Hybrid Coupler

,

2 Out 3dB Hybrid Coupler

Product Description

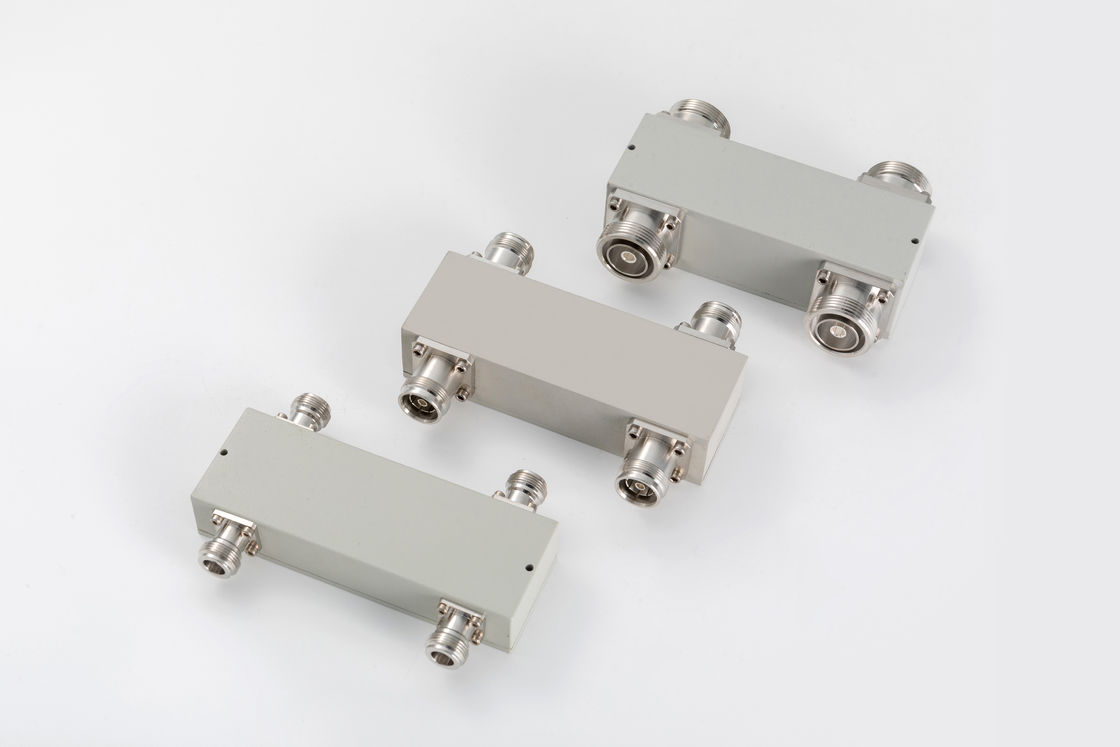

 698-2700MHz 2in 2out Hybrid Coupler PIM -150/-160



  • Good VSWR at all ports
  • High isolation
  • Good returen loss



Part Number VN-HC2x2-0727-Ox-XXX
Operating Frequency ( MHz ) 698-2700
Impedance ( Ohm ) 50
VSWR 1.2
Coupling (dB) 3±0.8
Insertion Loss (dB) ±3.6
Isolation (dB) 25
IM3 (dBc @ 2×43dBm) -150/-160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female/4.3-10 Female/DIN Female
Handling Power (Watt, max) 500(N:300)
Peak Power (Watt, max) .1500(N:1200)
   Dimension (mm)(L×W×H, excl connector)    127X44X25 127X44X31 127X44X38
Net Weight (g) 385± 20% 565± 20% 810± 20%
Packing Dimensions (mm,L×W×H) 165X87X35 170X100X40 170X100X40
Packing Carton Size (mm,L×W×H)  460X350X195   520X360X110   520X360X110





 698-2700MHz 2 In 2 Out Hybrid Coupler PIM -150/-160 0

































































our-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.











Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

698-2700MHz Hybrid Couplers
