698-3800MHz 2in2out 4.3-10 F/NF/Din F Hybrid Coupler

Name: 698-3800MHz 2in2out 4.3-10 F/NF/Din F Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-0738-OXx
Rating: 4.5 (106 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-HC2x2-0738-OXx

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    3800MHz RF Antenna Combiner, 698MHz RF Antenna Combiner, Hybrid Coupler 500W


Operating Frequency ( MHz ):	698-3800	Impedance ( Ohm ):	50
VSWR:	≤1.25	IM3 (dBc @ 2×43dBm):	-150 / -160
Handling Power (Watt, Max):	500（N:300）	Peak Power (Watt, Max):	1500（N：1200）

Operating Frequency ( MHz ):	698-3800
Impedance ( Ohm ):	50
VSWR:	≤1.25
IM3 (dBc @ 2×43dBm):	-150 / -160
Handling Power (Watt, Max):	500（N:300）
Peak Power (Watt, Max):	1500（N：1200）

Description

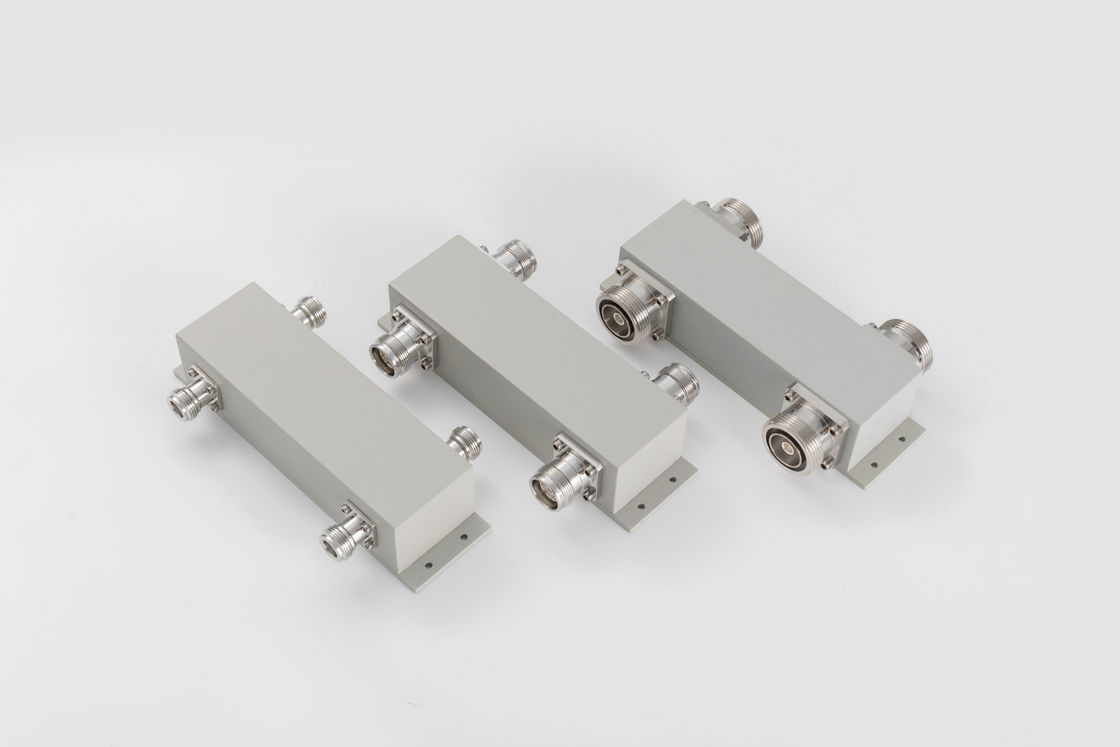

698-3800MHz 2in2out 4.3-10 F/NF/Din F Hybrid Coupler

698-3800MHz 2in2out 4.3-10 F/NF/Din F Hybrid Coupler

Wide band
Portable for installation
Good VSWR at all ports

VN-HC2x2-0738-OP-xxx.pdf

VN-HC2x2-0738-OD-xxx.pdf

VN-HC2x2-0738-ON-xxx.pdf

Part Number	VN-HC2x2-0738-OP
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	3.0±0.9
Insertion Loss (dB)	3.7
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-150 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female	4.3-10 Female	DIN Female
Handling Power (Watt, max)	500(N:300)
Peak Power (Watt, max)	1500(N:1200)
Dimension (mm)(L×W×H, excl connector)	141 × 44 × 38
Net Weight (g)	615 ± 20	685 ± 20	880 ± 20
Packing Dimensions (mm,L×W×H)	170 × 100 × 40
Packing Carton Size (mm,L×W×H)	460 × 350 × 195	520× 360 × 110	520× 360 × 110
ROHS Compliance	Yes

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).
