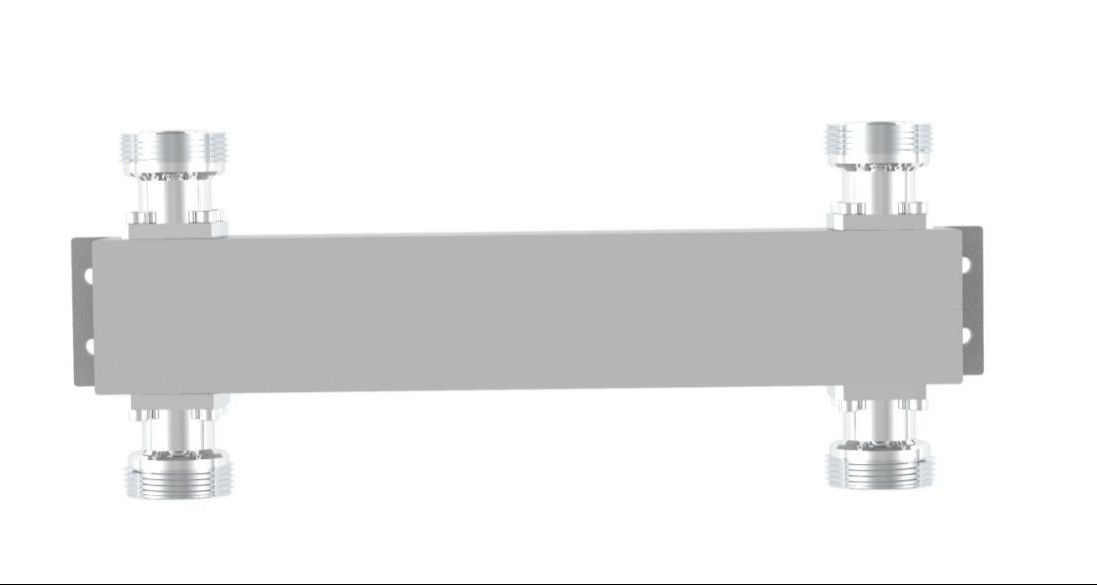

2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃

2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC2x2-035052-OD-xxx
Connector Type:
DIN Female
Impedance:
50Ω
Operating Temperature:
-40℃~+85℃
Power:
≤20W
Storage Temperature:
-55℃~+85℃
Type:
Hybrid
VSWR:
≤1.25
Highlight:

50 Ohm RF Antenna Splitter

,

Din Female RF Antenna Splitter

,

DIN Female Hybrid RF Splitter

Product Description

350-520MHz 2in 2out Din Female Hybrid Coupler



  • High isolation
  • Good returen loss
  • Good VSWR at all ports



Part Number VN-HC2x2-035052-OD-xxx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.4
Insertion Loss (dB) 3.4
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -140 / -150 / -155 / -160/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 244 × 40 × 35.5
ROHS Compliance Yes



2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃ 02in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃ 1
