350-520MHz 2in 2out Hybrid Coupler 4.3-10 Female Impedance 50Ω Insertion Loss 3.4dB
  • name

350-520MHz 2in 2out Hybrid Coupler 4.3-10 Female Impedance 50Ω Insertion Loss 3.4dB

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC2x2-035052-OP-xxx
Color:
Gray
Connector Type:
4.3-10 Female
Frequency Range:
350-520MHz
Impedance:
50Ω
Insertion Loss:
≤3.4dB
Material:
Aluminum Alloy
Power Handling:
50W
Product Name:
RF Antenna Combiner
Temperature Range:
-40℃-85℃
VSWR:
≤1.25:1
Highlight:

2out Hybrid Coupler

,

4.3 Female RF Antenna Coupler

,

RF Antenna Hybrid Coupler

Product Description

350-520MHz 2in 2out 4.3-10 Female Hybrid Coupler

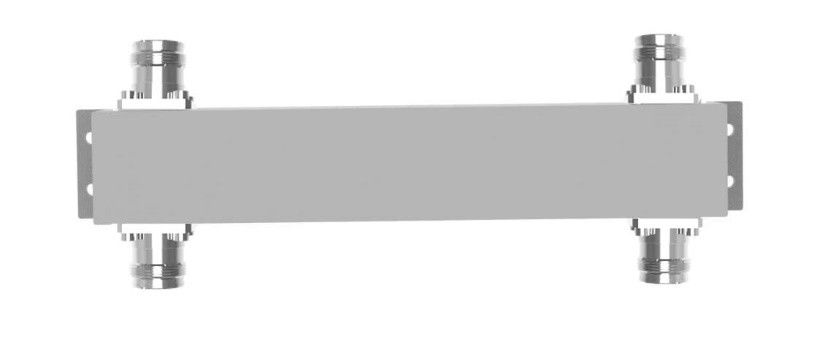

350-520MHz 2in 2out Hybrid Coupler 4.3-10 Female Impedance 50Ω Insertion Loss 3.4dB 0

  • Portable for installation
  • Low PIM
  • Wide band



Part Number VN-HC2x2-035052-OP-xxx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.4
Insertion Loss (dB) 3.4
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -140 / -150 / -155 / -160/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 244 × 40 × 35.5
ROHS Compliance Yes








350-520MHz 2in 2out Hybrid Coupler 4.3-10 Female Impedance 50Ω Insertion Loss 3.4dB 1350-520MHz 2in 2out Hybrid Coupler 4.3-10 Female Impedance 50Ω Insertion Loss 3.4dB 2





Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

2out Hybrid Coupler
