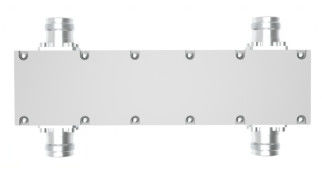

350-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler

Name: 350-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-03560-OP-xxx
Rating: 4.7 (148 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-HC2x2-03560-OP-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Female Hybrid Coupler, 6000MHz Hybrid Coupler, Gray Color Female Hybrid Coupler


Color:	Gray	Connector Type:	4.3-10 Female
Frequency Range:	350-6000	Impedance:	50Ω
Insertion Loss:	3±2 DB	Isolation:	≥20dB
Operating Temperature:	-40℃~+80℃	Power Handling:	200W
Product Name:	RF Antenna Combiner	Size:	176.5X105X50mm
VSWR:	≤1.35

Color:	Gray
Connector Type:	4.3-10 Female
Frequency Range:	350-6000
Impedance:	50Ω
Insertion Loss:	3±2 DB
Isolation:	≥20dB
Operating Temperature:	-40℃~+80℃
Power Handling:	200W
Product Name:	RF Antenna Combiner
Size:	176.5X105X50mm
VSWR:	≤1.35

Description

350-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler

350-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler

Good PIM up to -165@43dBm*2
Good returen loss
High directivity

VN-HC2x2-03560-OP-xxx.pdf

Part Number	VN-HC2x2-03560-OP-xxx
Operating Frequency ( MHz )	350-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±2
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)@xxx	-150/-160/-163/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	200
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	176.5X46X42
Net Weight (g)	780
ROHS Compliance	Yes
Packing Dimensions (mm,L×W×H)	250X105X50
Packing Carton Size (mm,L×W×H)	565X260X120
