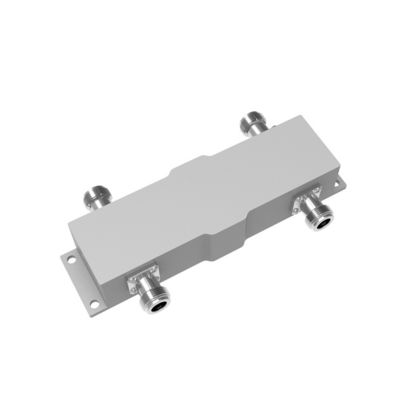

450-900MHz 2in 2out N Female Hybrid Coupler With Customized Connector

Name: 450-900MHz 2in 2out N Female Hybrid Coupler With Customized Connector
Brand: Vinncom
SKU: VN-HC2x2-04509-ON-xxx
Rating: 4.6 (177 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-04509-ON-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 60pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            N Female Hybrid Coupler, 450-900MHz Hybrid Coupler, 2in 2out Hybrid Coupler


Frequency:	450-900MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS	ROHS:	Compliance
Design:	Wide Band

Frequency:	450-900MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS
ROHS:	Compliance
Design:	Wide Band

Description

450-900MHz 2in 2out N Female Hybrid Coupler With Customized Connector

450-900MHz 2in 2out N Female Hybrid Coupler

Good VSWR at all ports
High isolation
Good PIM up to -163@43dBm*2

VN-HC2x2-04509-ON-xxx.pdf

Part Number	VN-HC2x2-04509-ON-xxx
Operating Frequency ( MHz )	450-900
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	3.0±0.5
Insertion Loss (dB)	3.5
Isolation (dB)	≥22
IM3 (dBc @ 2×43dBm)@xxx	-150 / -155 / -160 /-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	173.1×46×31.5
ROHS Compliance	Yes
