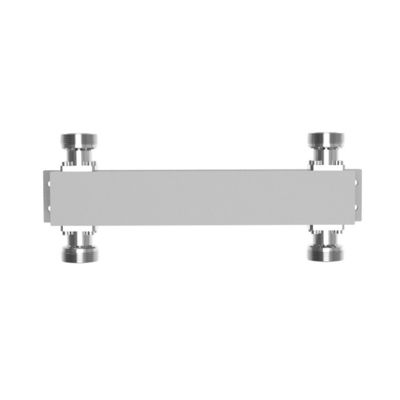

350-520MHz 2in 2out Din Female Hybrid Coupler
  • name
  • name
  • name
  • name

350-520MHz 2in 2out Din Female Hybrid Coupler

MOQ: 5pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 60pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-035052-OD-xxx
Frequency:
350-520MHz
Connector:
DIN Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

350-520MHz Din Female Hybrid Coupler

,

2in 2out Hybrid Coupler

,

2in 2out Din Female Hybrid Coupler

Product Description

350-520MHz 2in 2out 4.3-10 F Hybrid Coupler



  • High isolation
  • Portable for installation
  • Low PIM -165dBc@43dBm*2

                                                                                                                                                          VN-HC2x2-035052-OD-xxx .pdf
Part Number VN-HC2x2-035052-OD-xxx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.4
Insertion Loss (dB) 3.4
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -150 / -155 / -160 /s-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 244 × 40 × 35.5
ROHS Compliance Yes







350-520MHz 2in 2out Din Female Hybrid Coupler 0350-520MHz 2in 2out Din Female Hybrid Coupler 1

Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

350-520MHz Din Female Hybrid Coupler
