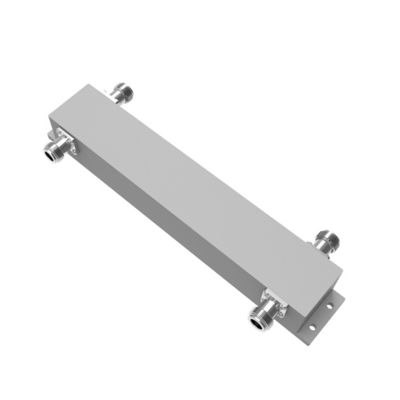

300-500MHz 2in 2out N Female Hybrid Coupler
  • name
  • name
  • name

300-500MHz 2in 2out N Female Hybrid Coupler

MOQ: 5pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 60pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-030050-ON-xxx
Frequency:
300-500MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS
ROHS:
Compliance
Highlight:

N Female Hybrid Coupler

,

300-500MHz Hybrid Coupler

,

2in 2out Hybrid Coupler

Product Description

300-500MHz 2in 2out N Female Hybrid Coupler



  • High isolation
  • Portable for installation
  • Low PIM -163dBc@43dBm*2

                                                                                                                                                          VN-HC2x2-030050-ON-xxx.pdf
Part Number VN-HC2x2-030050-ON-xxx
Operating Frequency ( MHz ) 300-500
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±1.0
Insertion Loss (dB) 3.8
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -150 / -155 / -160 /-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 244 × 40 × 28.5
ROHS Compliance Yes







300-500MHz 2in 2out N Female Hybrid Coupler 0300-500MHz 2in 2out N Female Hybrid Coupler 1
