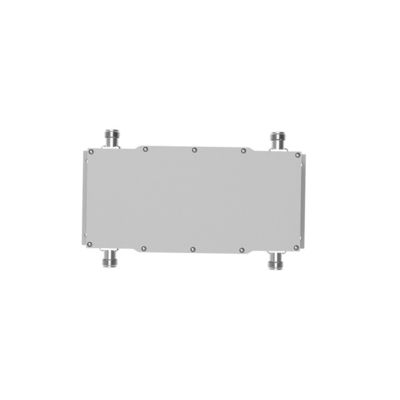

Name: 100-1000MHz 2in 2out N Female Hybrid Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2x2-001110-ON-xxx
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-HC2x2-001110-ON-xxx

Connector Type:

N Female

Frequency Range:

100-1000MHz

Operating Temperature:

-40°C~+80°C

VSWR:

≤1.3

Highlight:

N Female Hybrid Coupler

2in 2out Hybrid Coupler

100-1000MHz Hybrid Coupler

Product Description

100-1000MHz 2in 2out N Female Hybrid Coupler

Good VSWR
High isolation
Low PIM

VN-HC2x2-00110-ON-xxx.pdf

Part Number	VN-HC2x2-001110-ON-xxx
Operating Frequency ( MHz )	100-1000
Impedance ( Ohm )	50
VSWR	≤1.30
Coupling (dB)	3.0±1.2
Insertion Loss (dB)	4.2
Isolation (dB)	≥20
IM3 (dBc @ 2×43dBm)@xxx	-150 / -155 / -160 /-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	217 × 98× 38
ROHS Compliance	Yes

100-1000MHz 2in 2out N Female Hybrid Coupler 0
