HeFei Vinncom Electronic Technology Co.,Ltd.
Hot Products
Home /

Hot Products

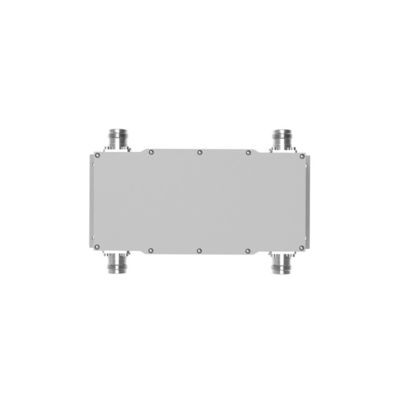

100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler
100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler
100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler
100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler

100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-HC2x2-001110-OP-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

4.3-10 F Hybrid Coupler

,

2in 2out Hybrid Coupler

,

100-1000MHz Hybrid Coupler

Connector Type:
4.3-10 Female
Frequency Range:
100-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.3
Connector Type:
4.3-10 Female
Frequency Range:
100-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.3
Description
100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler

100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler



  • Portable for installation
  • High isolation
  • Low PIM



          VN-HC2x2-00110-OP-xxx.pdf

Part Number VN-HC2x2-001110-OP-xxx
Operating Frequency ( MHz ) 100-1000
Impedance ( Ohm ) 50
VSWR ≤1.3
Coupling (dB) 3.0±1.2
Insertion Loss (dB) 4.2
Isolation (dB) ≥20
IM3 (dBc @ 2×43dBm)@xxx -150 / -155 / -160/-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
    Dimension (mm)(L×W×H, excl connector)     217 × 98 × 38
ROHS Compliance Yes







100-1000MHz 2in 2out 4.3-10 F Hybrid Coupler 0
