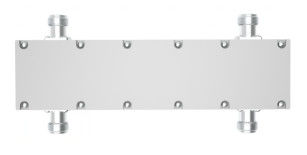

380-6000MHz 2in 2out N Female Hybrid Coupler

Name: 380-6000MHz 2in 2out N Female Hybrid Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2x2-03860-ON
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-03860-ON

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: D/A,L/C,D/P,T/T

Supply Ability: 60pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          N Female Hybrid Coupler, 6000MHz Hybrid Coupler, High Frequency Hybrid Coupler


Frequency:	380-6000MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS	ROHS:	Compliance
Design:	Wide Band

Frequency:	380-6000MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS
ROHS:	Compliance
Design:	Wide Band

Description

380-6000MHz 2in 2out N Female Hybrid Coupler

380-6000MHz 2in 2out N Female Hybrid Coupler

Good VSWR at all ports
High isolation
Low PIM -165dBc@43dBm*2

VN-HC2x2-03860-ON-xxx.pdf

Part Number	VN-HC2x2-03860-ON-xxx
Operating Frequency ( MHz )	380-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±2
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)@xxx	-150/-160/-163/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	200
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	176.5X46X42
Net Weight (g)	780
ROHS Compliance	Yes
Packing Dimensions (mm,L×W×H)	250X105X50
Packing Carton Size (mm,L×W×H)	565X260X120
