600-4200MHz 2in 2out DIN Female Hybrid Coupler for Signal Splitting
  • name

600-4200MHz 2in 2out DIN Female Hybrid Coupler for Signal Splitting

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC2x2-0642-OD-xxx
Connector Type:
DIN Female
Frequency Range:
600-4200MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

4200MHz DIN Female Hybrid Coupler

,

DIN Female Hybrid Coupler Signal Splitting

Product Description

600-4200MHz 2in 2out DIN Female Hybrid Coupler



  • High isolation
  • Portable for installation
  • Good VSWR



                          VN-HC2x2-0642-OD-xxx.pdf

Part Number VN-HC2x2-0642-OD-xxx
Operating Frequency ( MHz ) 600-4200
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ±1
Isolation (dB) 24
IM3 (dBc @ 2×43dBm)@xxx -150/-153/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
    Dimension (mm)(L×W×H, excl connector)     155.6*44*38
Packing Dimensions (mm,L×W×H) 250*105*50
Packing Carton Size (mm,L×W×H) 565*260*120
ROHS Compliance Yes

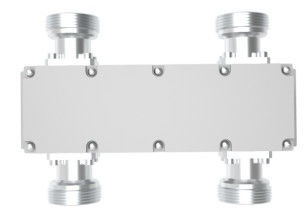

600-4200MHz 2in 2out DIN Female Hybrid Coupler for Signal Splitting 0





600-4200MHz 2in 2out DIN Female Hybrid Coupler for Signal Splitting 1











Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

4200MHz DIN Female Hybrid Coupler
