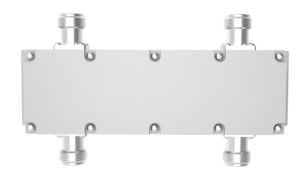

380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC

Name: 380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC2x2-03860-OP
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-03860-OP

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 60pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              380MHz Hybrid Coupler, Wide Band Female Hybrid Coupler, 2in 2out Hybrid Coupler


Frequency:	380-6000MHz	Connector:	4.3-10 Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS	ROHS:	Compliance
Design:	Wide Band	VSWR:	1.35

Frequency:	380-6000MHz
Connector:	4.3-10 Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS
ROHS:	Compliance
Design:	Wide Band
VSWR:	1.35

Description

380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC

380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC

Good VSWR at all ports
Portable for installation
Low PIM -165dBc@43dBm*2

Hybrid couplers are the special case of a four-port directional coupler that is designed for

a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids,

and 180 degree hybrids.

VN-HC2x2-03860-OP-xxx.pdf

Part Number	VN-HC2x2-03860-OP-xxx
Operating Frequency ( MHz )	380-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±2
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)@xxx	-150/-160/-163/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	200
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	176.5X46X42
Net Weight (g)	865
ROHS Compliance	Yes
Packing Dimensions (mm,L×W×H)	250X105X50
Packing Carton Size (mm,L×W×H)	565X260X120
