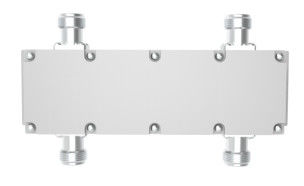

High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler
High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler

High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-HC2x2-0742-ON-150

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Wide Frequency N Female Hybrid Coupler

,

2in 2out Hybrid Coupler

,

698N Female Hybrid Coupler

Connector Type:
N Female
Frequency Range:
698-4200MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Connector Type:
N Female
Frequency Range:
698-4200MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Description
High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler

698-4200MHz 2in 2out N Female Hybrid Coupler



  • High isolation
  • Wide band
  • Good VSWR



                         VN-HC2x2-0742-ON-150.pdf

Part Number VN-HC2x2-0742-ON-150
Operating Frequency ( MHz ) 698-4200
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ±1
Isolation (dB) 24
IM3 (dBc @ 2×43dBm) -150
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 155.6*44*38
Packing Dimensions (mm,L×W×H) 170*100*40
Packing Carton Size (mm,L×W×H) 520*360*105
ROHS Compliance Yes







High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler 0High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler 1

Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
