1-6GHz 90° Hybrid Coupler
  • name

1-6GHz 90° Hybrid Coupler

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC90°-1G-6G-SMAF
Application:
As Same Band Combiner
Hight Isolation:
20
LOW VSWR:
1.25
Connector:
SMA Female
OEM/ODM:
Acceptable
Color:
Customized
Product Description

1-6GHz 90° Hybrid Coupler



  • Wide band
  • Portable for installation
  • Good returen loss




Part Number VN-HC90°-1G-6G-SMAF
Operating Frequency ( MHz ) 1000-6000
Phase Difference ( Ohm ) 90°
Nominal Split (dB) 3.01
Insertion Loss (dB) ≤0.7
VSWR ≤1.25:1
Amplitude Balance(dB) ≤±0.6
Phase Balance(°) ≤±5.0
Isolation(dB) ≥20
Impedance 50
Net Weight(KG) 0.15
Connectors SMA-F
Power (Watt, max) Average: 50W ; Peak: 1000W

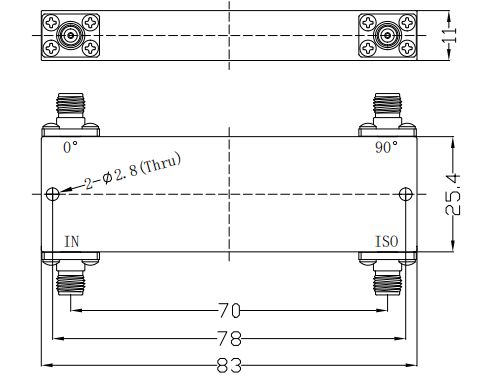

Dimension (mm)(L×W×H, excl connector) 83*25.4*11
ROHS Compliance Yes


                                                                                                                 1-6GHz 90° Hybrid Coupler 0
Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS
