1-6GHz 90° Hybrid Coupler
  • name

1-6GHz 90° Hybrid Coupler

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC90°-1G-18G-SMAF
Application:
As Same Band Combiner
Hight Isolation:
20
LOW VSWR:
1.8
Connector:
SMA Female
OEM/ODM:
Acceptable
Color:
Customized
Product Description

1-18GHz 90° Hybrid Coupler



  • Wider frequency range
  • Portable for installation
  • Good returen loss




Part Number VN-HC90°-1G-18G-SMAF
Operating Frequency ( MHz ) 1000-18000
Phase Difference ( Ohm ) 90°
Nominal Split (dB) 3.01
Insertion Loss (dB) ≤2.0
VSWR ≤1.8:1
Amplitude Balance(dB) ≤±1.0
Phase Balance(°) ≤±10
Isolation(dB) ≥16
Impedance 50
Net Weight(KG) 0.09
Connectors SMA-F
Power (Watt, max) 20

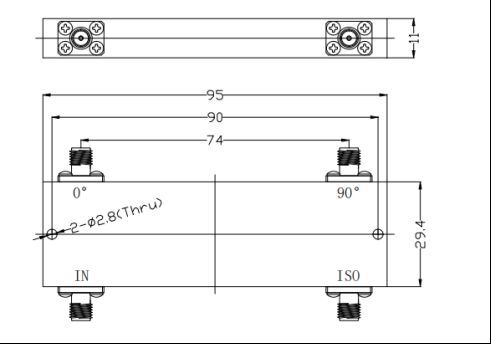

Dimension (mm)(L×W×H, excl connector) 95*29.4*11
ROHS Compliance Yes


                                             1-6GHz 90° Hybrid Coupler 0
Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS
