Name: 8GHz WAVEGUIDE DUPLEXER
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGD-OMT-ISO-08
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-WGD-OMT-ISO-08

Part Number:

VN-WGD-OMT-ISO-08

Operating Frequency ( GHz ):

Insertion Loss(dB):

≤2.0dB

Flatness:

≤0.4dB(Random ±30MHz Span)

Group Delay Variation:

≤15ns (Random ±30MHz Span)

Rejections(Low To ANT):

≥70dB@f3-f4 Filtering ≥15dB@f3-f4 Isolatio ≥50dB@30MHz-(f1-DS) ≥50dB@f4-2*f1 ≥30dB@2*f1-26GHz

Rejections(High To ANT):

≥70dB@f1-f2 Filtering ≥15dB@f1-f2 Isolation ≥50dB@30MHz-f1 ≥50dB@(f4+DS)-2*f3 ≥40dB@(f4+DS)-2*f3 (for Tunings 08.11.XHx, 08.12.XHx, 08.13.XHx)

Cross-polar Isolation:

≥30dB

Highlight:

8GHz waveguide duplexer

waveguide duplexer device

8GHz waveguide component

Product Description

8GHz WAVEGUIDE DUPLEXER

Broad or narrow bandwidth options (tailored to system)
Rugged and precision‑machined waveguide construction
High power handling capability (especially on Tx port)

Application Scenarios / Working Scenarios of a WAVEGUIDE DUPLEXER

Pulse radar systems –
A WAVEGUIDE DUPLEXER allows the radar to transmit a high‑power pulse through the antenna and then switch to receive mode to listen for echoes, sharing the same antenna.
Continuous‑wave (CW) radar and FMCW radar –
A WAVEGUIDE DUPLEXER enables simultaneous transmit and receive operation for Doppler and frequency‑modulated radar.
Satellite communication (Satcom) ground stations –
A WAVEGUIDE DUPLEXER separates the uplink (Tx) and downlink (Rx) signals that share a common dish antenna.
Point‑to‑point microwave links –
A WAVEGUIDE DUPLEXER enables full‑duplex communication over a single antenna in terrestrial backhaul systems.
Electronic warfare (EW) systems –
A WAVEGUIDE DUPLEXER protects the receiver from the jamming transmitter's high power while allowing both to share one antenna.
Aerospace and avionics (weather radar, collision avoidance) –
A WAVEGUIDE DUPLEXER is a critical component in airborne radar systems that use a single radome‑mounted antenna.
Marine and navigation radar –
A WAVEGUIDE DUPLEXER allows the shipboard radar to transmit and receive through the same rotating antenna.
Test and measurement setups –
A WAVEGUIDE DUPLEXER is used in laboratory environments to simulate full‑duplex communication or to separate signals in a shared test fixture.
Medical microwave systems –
A WAVEGUIDE DUPLEXER separates the therapeutic power from the reflected‑power monitoring receiver in diathermy systems.
Radio astronomy –
A WAVEGUIDE DUPLEXER enables a single large dish to be used for both pulsed radar transmissions (e.g., planetary radar) and sensitive reception.
Base station and repeater systems –
A WAVEGUIDE DUPLEXER is used in microwave repeaters to separate Tx and Rx signals in the same frequency‑duplexed link.

Part Number	VN-WGD-OMT-ISO-08
Operating Frequency ( GHz )	8
Insertion Loss(dB)	≤2.0dB
Flatness	≤0.4dB(Random ±30MHz span)
Group Delay Variation	≤15ns (Random ±30MHz span)
Return Loss (All Port)	≥15dB
Rejections(Low to ANT)	≥70dB@f3-f4 Filtering ≥15dB@f3-f4 Isolatio ≥50dB@30MHz-(f1-DS) ≥50dB@f4-2f1 ≥30dB@2f1-26GHz
Rejections(High to ANT)	≥70dB@f1-f2 Filtering ≥15dB@f1-f2 Isolation ≥50dB@30MHz-f1 ≥50dB@(f4+DS)-2f3 ≥40dB@(f4+DS)-2f3 (for tunings 08.11.XHx, 08.12.XHx, 08.13.XHx) ≥30dB@2*f3-26GHz
Cross-polar Isolation	≥30dB

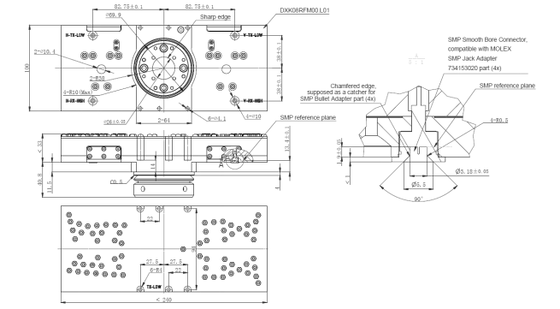

Dimension(mm)	As below
ROHS Compliance	Yes

8GHz WAVEGUIDE DUPLEXER
